Control Cabel 20 22 24 AWG/2 3 5 6 8 Cores Copper Braided Shield KVV Cable PVC Sheathed

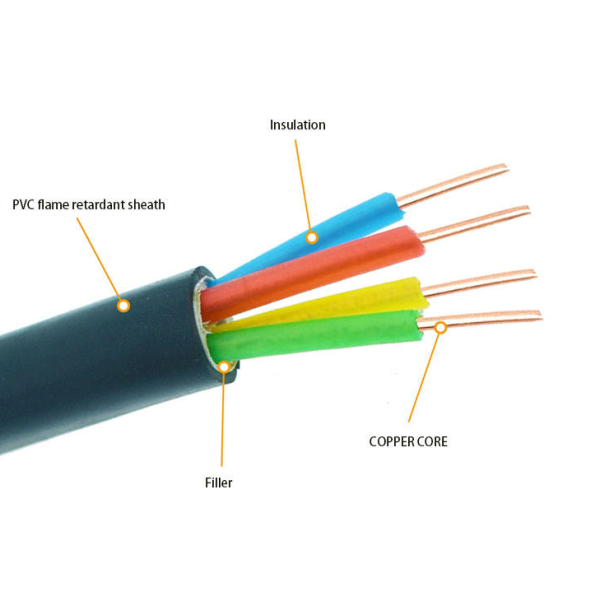

The full name of KVV control cable is copper-core PVC-insulated PVC-sheathed control cable. It is manufactured in strict accordance with the latest national standard GB/T 9330-2020. It is a dedicated signal and loop control cable for industrial automation and electrical control systems. With a rated working voltage of 450/750V, it is specifically designed for the control, signal transmission, measurement, and interlocking power supply of various electrical equipment, instruments, protective devices, and automation systems. It possesses stable and reliable electrical transmission performance and environmental adaptability, making it a fundamental supporting cable in fields such as industrial mining, construction, power, and transportation.
Specifications:
| |
| 2*0.75 | 5*2.5 | 12*1.5 | 24*1 | 44*0.75 |
| 2*1 | 7*0.75 | 12*2.5 | 24*1.5 | 44*1 |
| 2*1.5 | 7*1 | 14*0.75 | 24*2.5 | 44*1.5 |
| 2*2.5 | 7*1.5 | 14*1 | 27*0.75 | 44*2.5 |
| 3*0.75 | 7*2.5 | 14*1.5 | 27*1 | 48*0.75 |
| 3*1 | 8*0.75 | 14*2.5 | 27*1.5 | 48*1 |
| 3*1.5 | 8*1 | 16*0.75 | 27*2.5 | 48*1.5 |
| 3*2.5 | 8*1.5 | 16*1 | 30*0.75 | 48*2.5 |
| 4*0.75 | 8*2.5 | 16*1.5 | 30*1 | 52*0.75 |
| 4*1 | 10*0.75 | 16*2.5 | 30*1.5 | 52*1 |
| 4*1.5 | 10*1 | 19*0.75 | 30*2.5 | 52*1.5 |
| 4*2.5 | 10*1.5 | 19*1 | 37*0.75 | 52*2.5 |
| 5*0.75 | 10*2.5 | 19*1.5 | 37*1 | 61*0.75 |
| 5*1 | 12*0.75 | 19*2.5 | 37*1.5 | 61*1 |
| 5*1.5 | 12*1 | 24*0.75 | 37*2.5 | 61*1.5 |
| | | | | 61*2.5 |
Quality Control & Certifications
This series of KVV control cables boasts comprehensive compliance qualifications and authoritative endorsements for quality. All products are manufactured in strict adherence to the national standard GB/T 9330-2020 for plastic insulated control cables, while also complying with the conductor standard GB/T 3956. All products have passed comprehensive national standard tests including 2000V/5min power frequency withstand voltage, insulation resistance, and aging mechanical properties, ensuring that all performance indicators meet the required standards. The products hold formal CCC safety certification for market access, and the production system has passed ISO9001 quality management system certification. Some derivative flame-retardant and shielded models have also simultaneously passed CQC quality certification. The entire production process is traceable and quality standardization is controllable.
FAQ
Q: What is KVV Cable?
A: KVV Cable is a Copper Core PVC Insulated and PVC Sheathed Control Cable designed for fixed control, signal, and measurement wiring in industrial and commercial systems.
A: KVV Cable is a Copper Core PVC Insulated and PVC Sheathed Control Cable designed for fixed control, signal, and measurement wiring in industrial and commercial systems.
Q: Can KVV Cable be used outdoors?
A: Yes, KVV Cable can be used in protected outdoor environments; for direct sunlight or harsh conditions, special UV-resistant or armored versions are available.
A: Yes, KVV Cable can be used in protected outdoor environments; for direct sunlight or harsh conditions, special UV-resistant or armored versions are available.
Q: What voltage rating does KVV Cable have?
A: The standard rated voltage is 450/750V.
A: The standard rated voltage is 450/750V.
Q: Is KVV Cable flame-retardant?
A: Standard KVV Cable is flame-retardant, and LSZH or higher flame-retardant grades are available on request.
A: Standard KVV Cable is flame-retardant, and LSZH or higher flame-retardant grades are available on request.
Q: Can you produce custom lengths and colors?
A: Yes, we can produce KVV Cable in customized lengths, colors, and core markings according to project needs.
For high-quality KVV Cable and professional technical support, contact us today for a competitive quotation.
A: Yes, we can produce KVV Cable in customized lengths, colors, and core markings according to project needs.
For high-quality KVV Cable and professional technical support, contact Zhejiang Zhongjing Wire & Cable Co., Ltd today for a competitive quotation.
Contact us
If you have any requirements or inquiries regarding the product, please feel free to contact us. Our professional engineers and sales team will be available to assist you.
