PV1-F Solar Power Cable Approval Battery DC Wire For Solar Panel

Model : PV1-F

Conductor Material : Tin Plated Copper

MOQ : 1000

Packaging Details : Wooden Drum、cardboard box、wooden pallet

Rated Voltage : 1.5KV DC

Rated Current : 55A

Sheath : XLPO/XLPE

Working Temperature : - 45 °+120 °

Model Number : PV1-F

Type : Low Voltage

Price : usd 0.35 ～ 1/ meter

Supply Ability : 800–1500 kilometers per month

Application : Photovoltaic Power, Construction, Industrial, Power Station, power station/Industrial/photovoltaic power/

Brand Name : F.T

Place of Origin : Shaanxi, China

Delivery Time : 30 days

Jacket : PVC

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Specification : 6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Contact Now

PV1-F Solar Power Cable Approval Battery DC Wire for Solar Panel

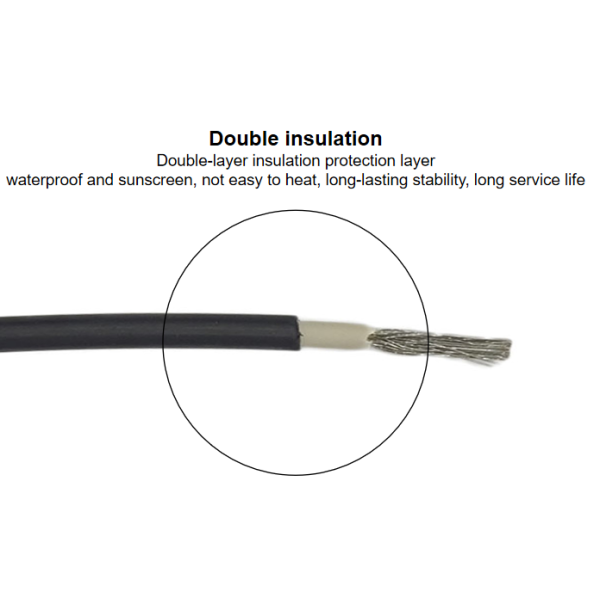

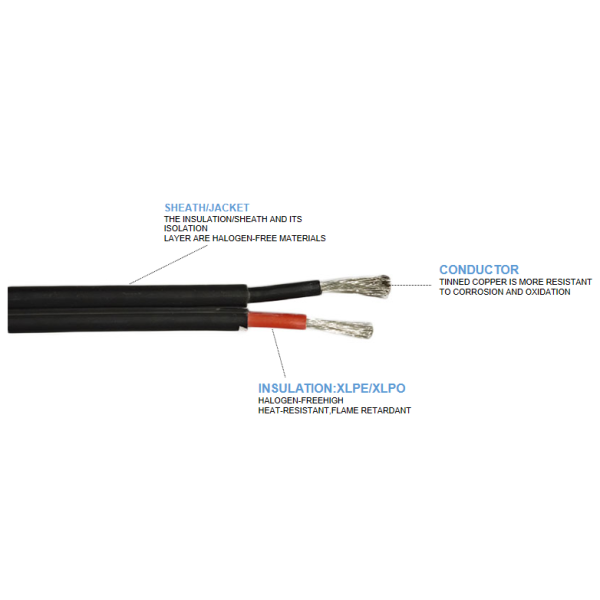

XLPO insulated sheathed photovoltaic solar cable Used to connect solar cells and photovoltaic modules. It adopts anti-oxidation tinned conductor, irradiation cross-linked low-smoke halogen-free flame retardant polyolefin double insulation, has good mechanical structure strength, extremely durable outer sheath has good durability, and can effectively waterproof, resist chemical corrosion and ultraviolet, ozone and other chemicals.

	Shaanxi
Application	photovoltaic power, Construction, Industrial, Power Station
Conductor Material	tin plated copper
Rated Voltage	1.5KV DC
Rated Current	55A
Brand Name	F.T
Model Number	PV1-F
Type	LOW VOLTAGE
Sheath	XLPO/XLPE
Application	power station/Industrial/photovoltaic power
Working temperature	- 40 ℃ - 120 ℃
Specification	6mm ²/ 2.5mm ²/ 4mm ²/ 10mm ²/16mm ²/25mm ²/35mm ²

Conductor cross‑section(mm²)	Conductor structure(n/mm)	Stranded outer diameter(mm)	Insul. Thick.(mm)	Conductor resistance(Ω/km)	Ampacity 60℃(A)
2*1.2	30/0.25	0.7	5.00*10.30	13.7	30
2*2.5	49/0.25	0.7	5.20*10.80	8.21	41
2*4.0	56/0.285	0.7	5.50*11.20	5.09	55
2*6.0	84/0.285	0.7	6.20*12.60	3.39	70
2*10.0	84/0.40	0.7	7.5*15.20	1.95	98
2*16.0	128/0.40	0.7	9.60*19.70	1.24	132

Application Fields of Solar PV Cables

Residential Distributed PV Systems

Household rooftop, balcony and off‑grid solar power systems, for wiring between solar panels, junction boxes and inverters.
Commercial & Industrial PV Stations

Factory, warehouse and commercial building rooftop solar projects, suitable for medium‑high current DC power transmission.
Large‑Scale Ground‑Mount Solar Farms

Desert, mountain, fishery‑PV and agriculture‑PV complementary power plants, adapting to long‑term harsh outdoor conditions.
Energy Storage & Off‑Grid Systems

RV solar power, island power supply, solar water pumps and outdoor base stations, connecting PV modules with energy storage batteries.
Special‑Environment Projects

Coastal salt‑fog areas, alpine cold regions and high‑temperature zones, with excellent corrosion‑resistant and anti‑aging performance.

PV1‑F Solar Cable FAQ

Q1: What voltage do your PV cables support?

A: Our PV1‑F cables are rated for 1.5kV DC, the standard voltage for most global solar panel DC‑side wiring.

Q2: Which size should I choose: 4mm², 6mm² or 10mm²?

A: 4mm² for small home solar systems; 6mm² for medium rooftop projects; 10mm² for large‑scale stations or long‑distance wiring to reduce voltage drop.

Q3: What is the operating temperature range of your solar cables?

A: They run stably from ‑40℃ to 120℃, suitable for cold high‑altitude, hot desert and coastal salt‑fog environments.

Q4: Do your PV cables have international certifications?

A: Yes. They pass TÜV EN50618, UL4703 and IEC standards, widely approved for global residential, commercial and utility‑scale solar projects.

Q5: Can you provide customized cables and fast delivery?

A: We support customization on length, printing and packaging. Mainstream sizes 4/6/10mm² are in stock for bulk orders and urgent shipment.
