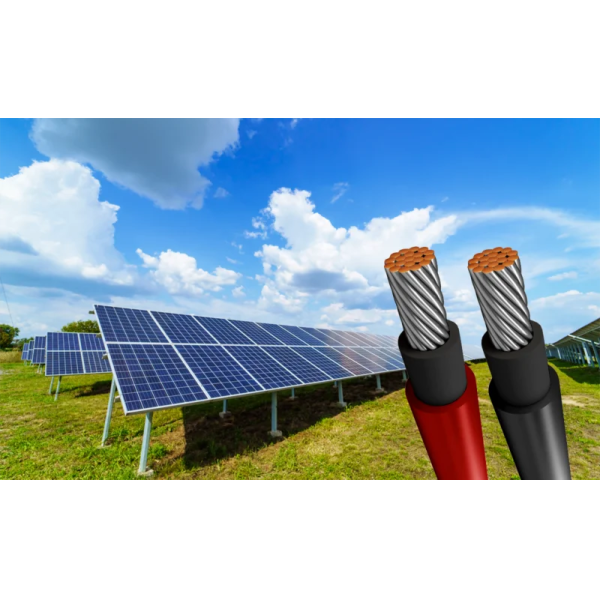

4mm2 Solar Panel Cable With MC4 Connectors 1500V DC Outdoor PV Extension

Cable Core : 4mm² single core

Brand Name : F.T

Place of Origin : china

Price : usd 0.3 ～ 0.6/ meter

MOQ : 1000

Model Number : solar cable

Size : CUSTOMIZED

Connector Type : MC4 compatible

Packaging Details : Wooden Drum、cardboard box、wooden pallet

Application : Outdoor photovoltaic extension between panels or from string to inverter

Supply Ability : 800–1500 kilometers per month

Rated Voltage : 1500V DC

Delivery Time : 30 days

Certification : tuv

Payment Terms : Western Union,T/T,D/P,D/A,L/C

Contact Now

Solar Panel Cable 4mm² with MC4 Connectors | 1500V DC Outdoor PV Extension

Product Description

This 4mm² solar extension cable comes with MC4 connectors factory‑crimped on both ends. Rated at 1500V DC, it works with modern high‑voltage string inverters and bifacial panel arrays. The connector housing uses UV‑stabilized PPO material, matched with gold‑plated copper contacts to keep contact resistance below 0.5 mΩ.

The cable itself meets PV1‑F or H1Z2Z2‑K construction (tinned copper / XLPE insulation). IP68 rating allows direct burial, outdoor exposure, or conduit routing. Each length is tested for insulation resistance and connector pull‑out force before packing.

Key Features

4mm² tinned copper conductor – resists oxidation in humid or coastal environments.
1500V DC system rating – compatible with modern utility‑scale and commercial PV systems.
MC4 connectors (male & female) – type IV certified, locking latch with audible click.
IP68 waterproof – dust‑tight and submersible for outdoor or underground use.
Wide temperature range – -40°C to +90°C (cable); -40°C to +85°C (connector).
Pre‑assembled – no on‑site crimping, saves installation time and reduces failure points.

Technical Specifications

Parameter	Value
Cable type	PV1‑F 4mm² or H1Z2Z2‑K 4mm²
Conductor	Tinned copper, Class 5 flexible (56/0.30 mm)
Insulation	XLPO, halogen‑free
Outer diameter (cable)	6.1 ±0.2 mm
Rated voltage	DC 1500V
Current carrying capacity	55 A (30°C ambient)
Connector rating	1500V / 50A
Contact material	Gold‑plated copper (silver‑plated optional)
Connector housing	PPO, UV resistant, flammability UL94‑V0
Ingress protection	IP68 (mated condition)
Temperature range (cable)	-40°C to +90°C
Temperature range (connector)	-40°C to +85°C
Mating cycles	≥50 cycles

Available Lengths (custom cut)

Length	Typical use
1m	Short jumper between panels in portrait layout
3m, 5m	Standard extension from panel to array junction
10m, 20m	String to combiner box or inverter input
50m, 100m	Long DC runs in ground‑mount farms

Other lengths available on request (±2% tolerance).

Typical Applications

Connecting adjacent solar panels in series (string)
Extending existing PV cables without on‑site crimping
Replacing damaged pigtails on older modules
Portable solar kits (camping, RV, off‑grid sheds)

Not recommended for AC side or indoor wiring unless enclosed in conduit per local code.

4mm2 Solar Panel Cable With MC4 Connectors 1500V DC Outdoor PV Extension

Why choose this pre‑assembled cable?

Three reasons: one less failure point (no field crimping), verified 1500V DC insulation, and connectors that lock tight without special tools. Installers report 30% faster string wiring compared to loose cable + separate connector kits.
